Name: MRL Lifts (Machine Room-less)
Brand: CIRUS SOLUTIONS
Availability: InStock

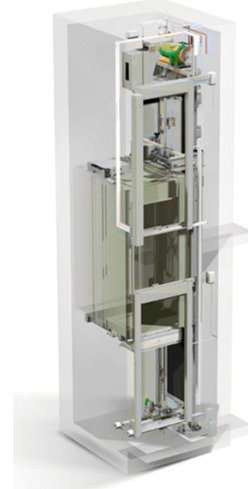

Technical Layout / Cabin Reference

Technical Documentation

Download the comprehensive product guide and structural dimensions from the official catalogue.

Download Catalogue (PDF)

Need Custom Sizing or BOQ?

Speak directly with our technical engineering consultants for customized shaft sizes, load ratings, or layout drawings.

Call +91 9152453825 Instant WhatsApp Chat

Product Overview

Its latest advance technology in vertical transportation. It provides greater freedom to architect in designing building especially commercial ones. Gearless motor is used by default which cuts down operational cost drastically. Machine room is not required at all.

CIRUS MRL (Machine Room-Less) Elevators optimize building space by housing the compact permanent-magnet synchronous gearless motor directly inside the lift shaft, eliminating the rooftop machine room entirely.

Primary Applications

Commercial Buildings Modern Residential Apartments Low-to-Mid Rise Structures with rooftop restrictions

Standard Engineering Features

Permanent Magnet Synchronous Gearless Motor (PMSM).
Eliminates machine room requirement on terrace.
Down / Full collective control.
VVVF Drive for Door & Lift.
Emergency L.E.D Lighting & Automatic Rescue Device ( A.R.D).
Over speed & Overload Protection Devices.
Full curtain infrared door safety along with alarm and intercom systems.

Key Value Advantages

Up to 40% electrical energy savings compared to conventional geared units

Zero architectural overhead structure needed

Extremely silent vibration-free motion

Technical Specifications

All Dimensions in Millimeters (mm)

Persons	Load (kg)	Lift Shaft (mm)		Car Inside (mm)		Clear Opening	Machine Room (mm)		Pit	Overhead
Persons	Load (kg)	Width	Depth	Width	Depth	Clear Opening	Width	Depth	Pit	Overhead
5	340	1700	1700	750	1250	700	N/A	N/A	1600	4250
5	340	2000	1500	1000	900	700	N/A	N/A	1600	4250
6	408	1800	1750	800	1300	700	N/A	N/A	1600	4250
6	408	2000	1650	1000	1100	700	N/A	N/A	1600	4250
8	544	2000	1850	1000	1400	800	N/A	N/A	1600	4250
8	544	2300	1650	1300	1100	800	N/A	N/A	1600	4250
10	680	2300	1800	1300	1350	800	N/A	N/A	1600	4250
10	680	2100	2100	1100	1600	800	N/A	N/A	1600	4250
