Commercial • Industrial • Residential • Utility
Bespoke Compact Villa & Bungalow Lifts
Download the comprehensive product guide and structural dimensions from the official catalogue.
Download Catalogue (PDF)Speak directly with our technical engineering consultants for customized shaft sizes, load ratings, or layout drawings.
Its design to cater bungalows, duplex and other commercial spaces were space is premium. It’s totally customized to deliver as per your need. With pit without pit all options are available. Hydraulic MRL both options are available.

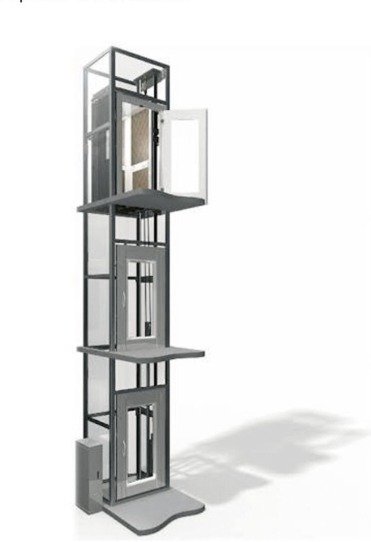

Engineered for luxury residences, duplex villas, and executive spaces, CIRUS Home Lifts fit smoothly into existing or new architectural footprints without requiring deep civil pits or massive overhead heights.
| Persons | Load (kg) | Lift Shaft (mm) | Car Inside (mm) | Clear Opening | Machine Room (mm) | Pit | Overhead | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Width | Depth | Width | Depth | Width | Depth | |||||
| 3 | 204 | 1400 | 1375 | 800 | 1000 | 800 | N/A | N/A | 550 | 2700 |
| 3 | 204 | 1400 | 1375 | 850 | 1000 | 800 | N/A | N/A | 550 | 2700 |
| 4 | 272 | 1400 | 1575 | 800 | 1200 | 800 | N/A | N/A | 550 | 2700 |
| 4 | 272 | 1400 | 1625 | 800 | 1250 | 800 | N/A | N/A | 550 | 2700 |
| 5 | 340 | 1450 | 1575 | 900 | 1200 | 800 | N/A | N/A | 550 | 2700 |
| 5 | 340 | 1450 | 1625 | 900 | 1250 | 800 | N/A | N/A | 550 | 2700 |
| 6 | 408 | 1500 | 1500 | 1000 | 1100 | 800 | N/A | N/A | 550 | 2700 |
| 6 | 408 | 1600 | 1675 | 1100 | 1200 | 800 | N/A | N/A | 550 | 2700 |
Elevators
Its simple, rugged and widely used product. Specially used in various residential projects. We have various door options to cater to different design challenges and taste in building constructions.
Elevators
Its most commonly used in most of applications be it Residential, commercial industrial or any other utility services. We provide from simplest cost effective variant to latest state of art technology to choose from.
Elevators
Observation lift is primarily used in commercial setup. The drive used is hydraulic most of time. We are open to designing cabin of such lift along with architect or user as per their requirement. Its decorative lift required malls specially.
